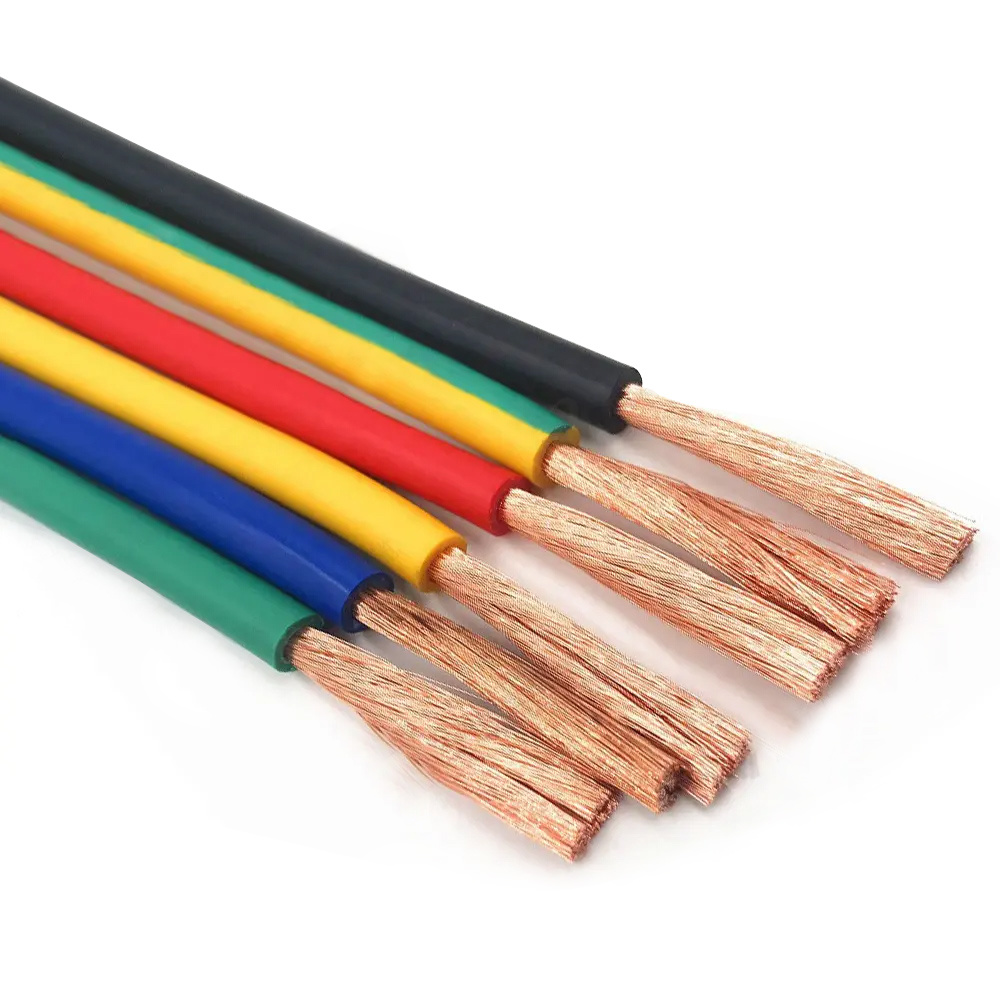

電力電纜 UL11627 光伏太陽能電纜儲能線新能源電纜逆變器電�
�(chǎn)品分類：
�(guān)鍵詞�
光伏電纜
太陽能電�
新能源汽車充電線
電池電纜
耐高溫電�
電線電纜工廠
�(chǎn)品說�
1.單根或由多根絞合�(dǎo)體，PVC絕緣單芯�
2.額定溫度�105�
3.額定電壓�2000v ac/2000v dc
4.�(chǎn)品標�(zhǔn)：UL758/UL1581
5.芯數范圍�1，截面積范圍�30AWG-2000Kcmil
6.通過VW-1及CSA FT1垂直阻燃測試
7.用途：可用于光伏逆變器和儲能系統連接�/新能源領�，光伏太陽能�(fēng)�，新能源汽車�
�(chǎn)品規�
|
線號 |
�(dǎo)體結�(gòu)(n/mm) |
�(dǎo)體截面積 |
�(dǎo)體束絞外�(mm) |
最小平均厚�(mm) |
最小絕緣厚�(mm) |
線纜外徑 |
最大導體電�(?/KM� |
|
18 |
Tinned Copper41/0.16 |
0.82 |
1.18 |
0.76 |
0.69 |
2.80±0.15 |
23.20 |
|
16 |
Tinned Copper105/0.127 |
1.33 |
1.50 |
0.76 |
0.69 |
3.40±0.15 |
14.60 |
|
14 |
Tinned Copper168/0.127 |
2.13 |
2.05 |
0.76 |
0.69 |
3.80±0.15 |
8.960 |
|
12 |
Tinned Copper266/0.127 |
3.37 |
2.61 |
0.76 |
0.69 |
4.30±0.15 |
5.640 |
|
10 |
Tinned Copper413/0.127 |
5.23 |
3.28 |
0.76 |
0.69 |
5.00±0.20 |
3.546 |
|
9 |
Tinned Copper525/0.127 |
6.65 |
3.81 |
0.76 |
0.69 |
5.50±0.20 |
2.813 |
|
8 |
Tinned Copper665/0.127 |
8.42 |
4.18 |
1.14 |
1.04 |
6.60±0.25 |
2.230 |
|
7 |
Tinned Copper836/0.127 |
10.58 |
4.70 |
1.14 |
1.04 |
7.10±0.25 |
1.768 |
|
6 |
Tinned Copper1045/0.127 |
13.23 |
5.33 |
1.52 |
1.37 |
8.50±0.25 |
1.403 |
|
5 |
Tinned Copper1330/0.127 |
16.84 |
6.04 |
1.52 |
1.37 |
9.20±0.25 |
1.113 |
|
4 |
Tinned Copper1665/0.127 |
21.08 |
6.82 |
1.52 |
1.37 |
10.00±0.30 |
0.882 |
|
3 |
Tinned Copper2109/0.127 |
26.7 |
7.45 |
1.52 |
1.37 |
10.50±0.30 |
0.6996 |
|
2 |
Tinned Copper2664/0.127 |
33.73 |
8.61 |
1.52 |
1.37 |
11.80±0.40 |
0.5548 |
|
1 |
Tinned Copper3367/0.127 |
42.63 |
9.53 |
2.03 |
1.83 |
13.70±0.40 |
0.4398 |
|
1/0 |
BARE COPPER1924/0.20 |
60 |
11.19 |
2.03 |
1.83 |
15.50±0.40 |
0.3354 |
|
2/0 |
BARE COPPER2257/0.20 |
70 |
12.12 |
2.03 |
1.83 |
16.40±0.50 |
0.266 |
|
3/0 |
BARE COPPER3034/0.20 |
95 |
14.06 |
2.03 |
1.83 |
18.20±0.50 |
0.211 |
|
4/0 |
BARE COPPER 3848/0.20 |
120 |
15.83 |
2.03 |
1.83 |
20.00±0.50 |
0.1673 |
